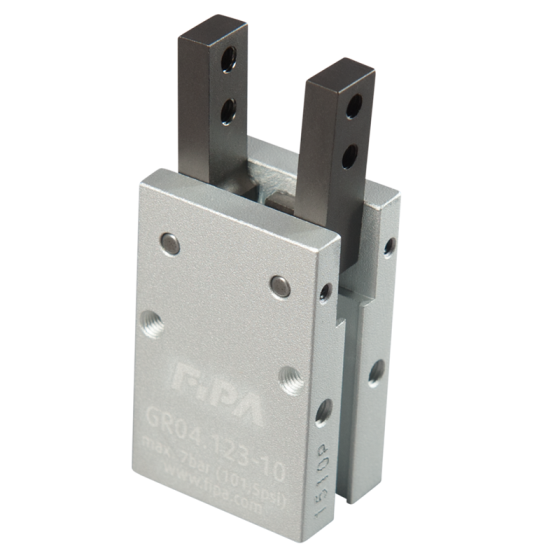

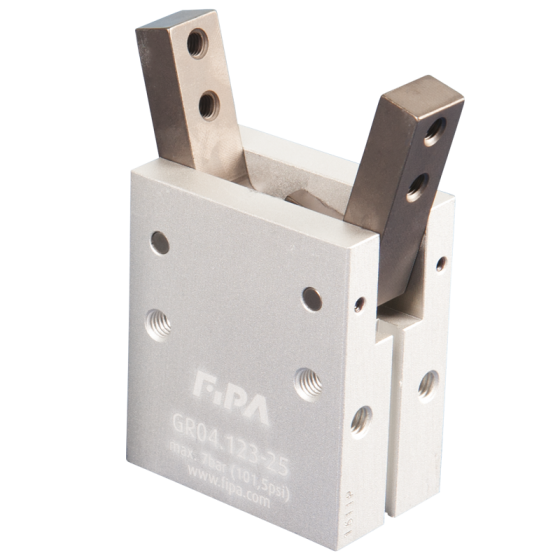

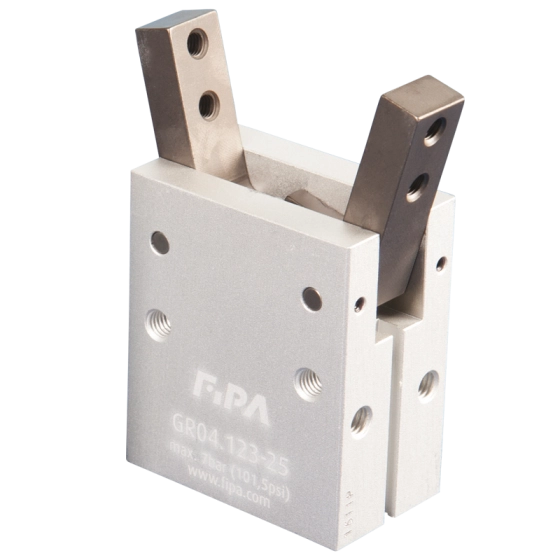

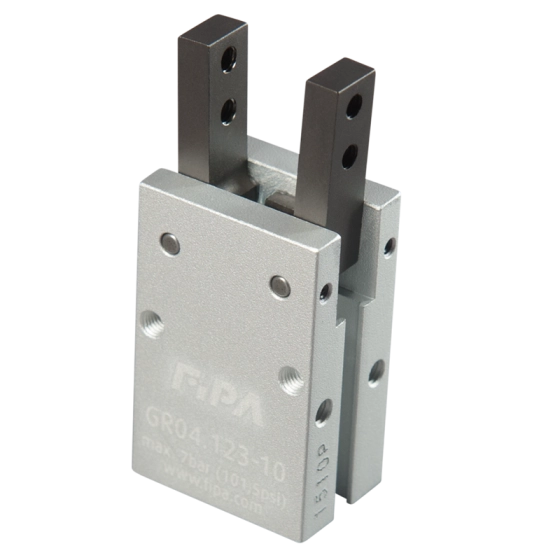

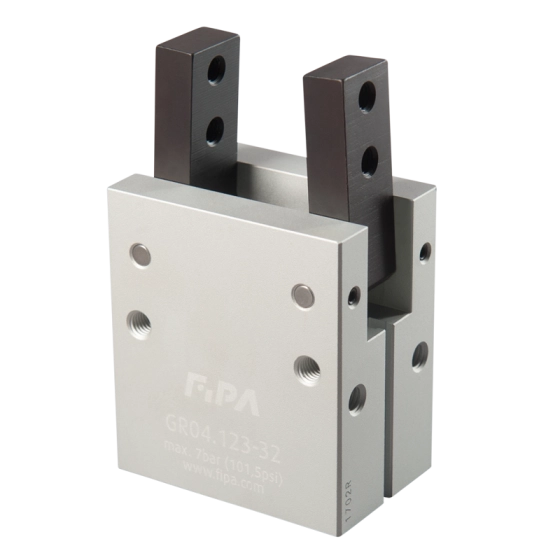

제품 특징

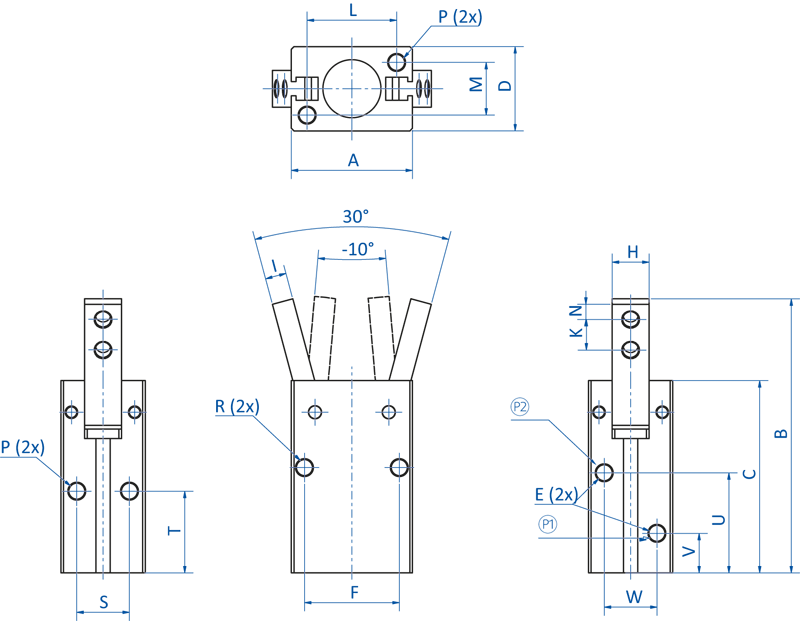

| Item No. | GR04.123-10 | GR04.123-16 | GR04.123-20 | GR04.123-25 | GR04.123-32 |
| 피스톤 직경 [mm] | 10 | 16 | 20 | 25 | 32 |
| 무게[g] | 100 | 120 | 200 | 330 | 560 |
| 앵글 스트로크 개방 [°] | -10 | -10 | -10 | -10 | -10 |
| 앵글 스트로크 닫힘[°] | 30 | 30 | 30 | 30 | 30 |
| E | M3 | M5 | M5 | M5 | M5 |
| I | 4 | 6 | 7 | 9 | 10 |
| L | 17 | 26 | 35 | 40 | 46 |
| M | 10 | 14 | 16 | 20 | 26 |
| N | 3 | 3 | 4 | 5 | 6 |
| P | M3 | M4 | M5 | M6 | M6 |
| R | M3 | M4 | M5 | M6 | M6 |
| S | 10 | 14 | 16 | 20 | 26 |
| T | 15.5 | 21 | 22 | 24.5 | 30 |
| U | 19 | 25.5 | 28 | 31 | 33.5 |
| V | 7.5 | 7.5 | 8 | 9 | 10 |
| W | 10 | 12 | 13 | 18 | 24 |
| A | 23 | 34 | 45 | 52 | 60 |
| B | 52 | 64 | 75 | 89 | 100 |
| C | 36.5 | 45.5 | 53 | 61 | 68 |
| D | 16 | 22 | 26 | 32 | 40 |
| F | 18 | 24 | 30 | 36 | 44 |
| H | 7 | 9 | 12 | 14 | 18 |
| K | 6 | 8 | 10 | 12 | 14 |
| CAD | 다운 | 다운 | 다운 | 다운 | 다운 |
Diagram

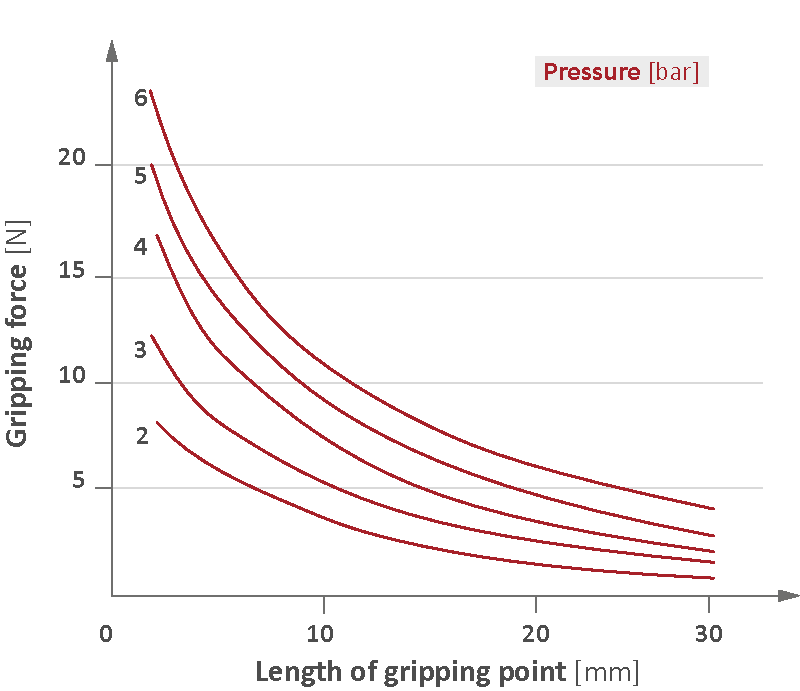

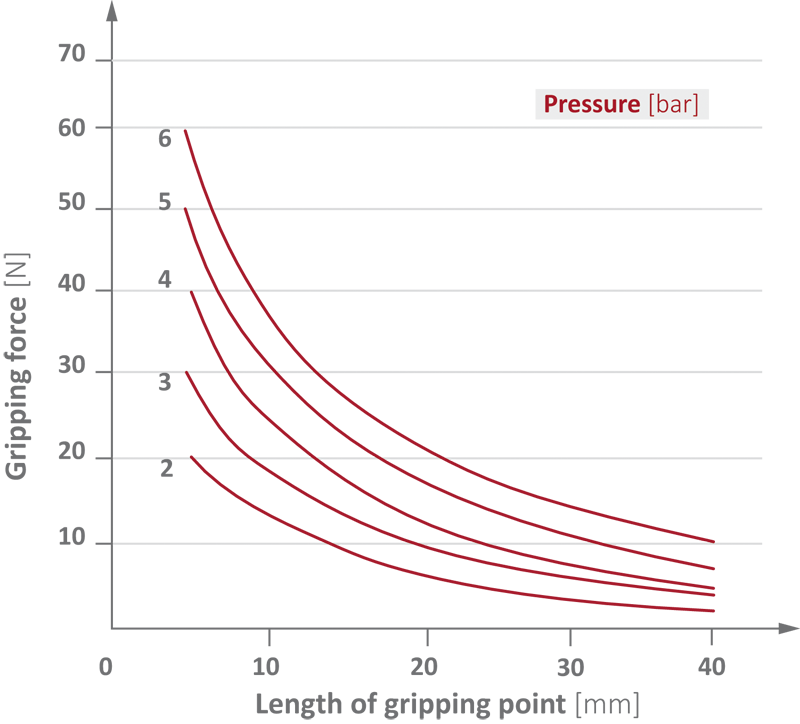

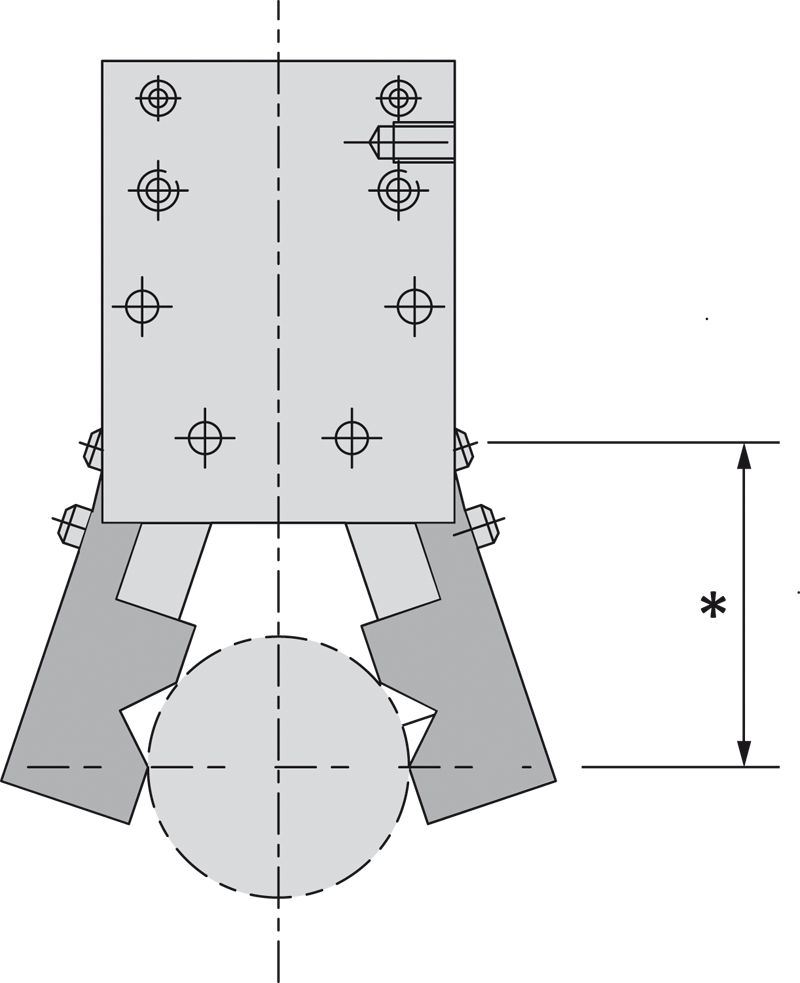

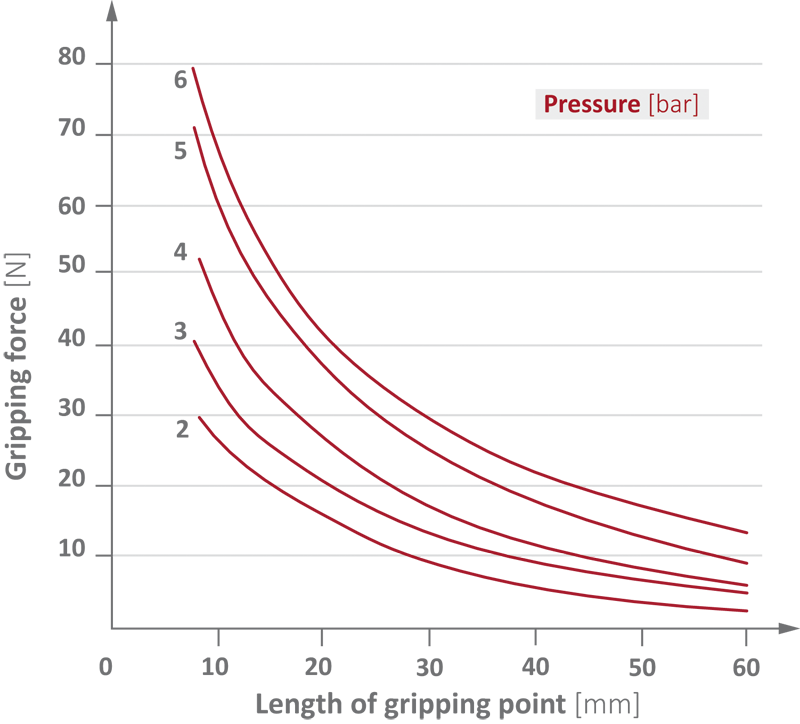

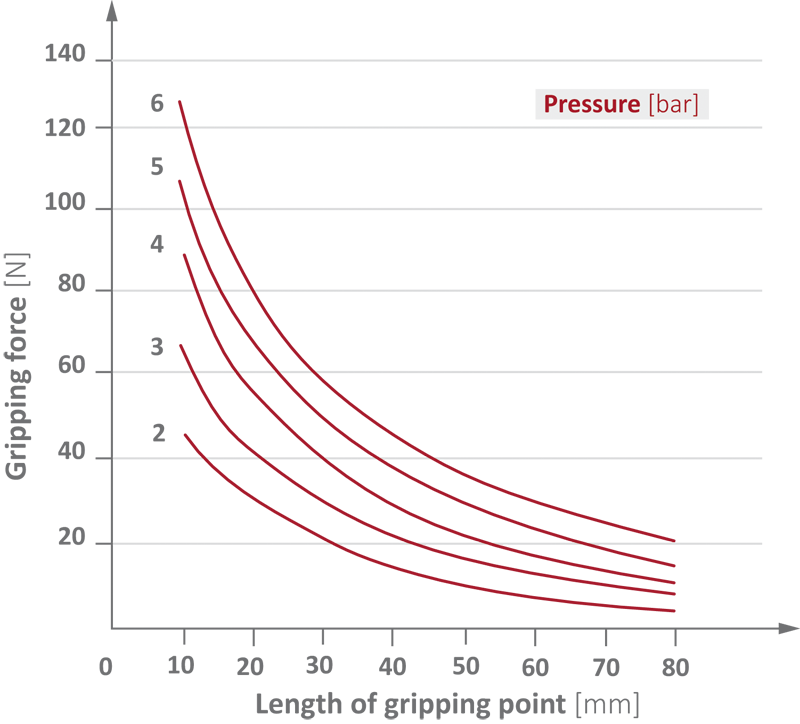

 Length of gripping point (* see diagrams) |  Gripping force as a function of length of gripping point and feed pressure |
 Length of gripping point (* see diagrams) |  Gripping force as a function of length of gripping point and feed pressure |
 Length of gripping point (* see diagrams) |  Gripping force as a function of length of gripping point and feed pressure |
 Length of gripping point (* see diagrams) |  Gripping force as a function of length of gripping point and feed pressure |
 Length of gripping point (* see diagrams) |  Gripping force as a function of length of gripping point and feed pressure |
