Name: 스프링 레벨러/브라켓/진공패드홀더/ 플린저/진공컵 홀더 대형 헤드 진공 흡입 컵 스프링 레벨러 / 피팅 브라켓 / 진공컵 홀더 [MVS/중국]
Brand: MVS
Price: 15000 KRW
Availability: InStock

Home
버큠 그리핑 시스템
스프링 레벨러/브라켓/진공패드홀더/ 플런저

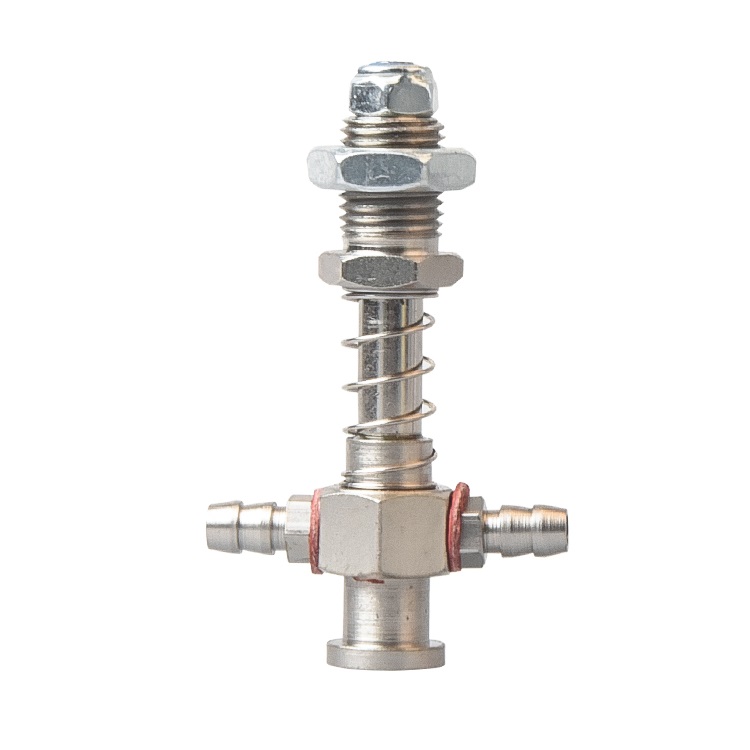

스프링 레벨러/브라켓/진공패드홀더/ 플린저/진공컵 홀더 대형 헤드 진공 흡입 컵 스프링 레벨러 / 피팅 브라켓 / 진공컵 홀더 [MVS/중국]

SALE

15,000원 22,000원

CAD

재료 : 철 + 니켈

구매하기 선물하기 장바구니

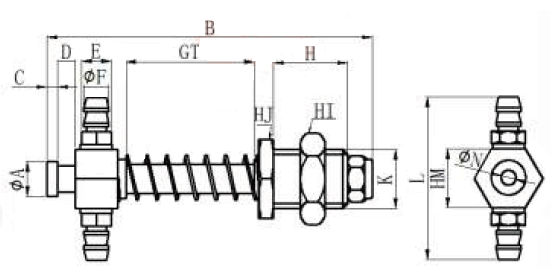

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Weight
M10-L45-07	7	45	2.1	3.6	H6	5	4	12.5	14	12	M10*1.0	33	12	3	25g
M10-L55-07	7	55	2.1	3.6	H6	5	16	12.5	14	12	M10*1.0	33	12	3	27g
M10-L65-07	7	65	2.1	3.6	H6	5	25	12.5	14	12	M10*1.0	33	12	3	29g
M10-L75-07	7	75	2.1	3.6	H6	5	36	12.5	14	12	M10*1.0	33	12	3	30g
M10-L45-11	11	45	2.1	6.4	H6	5	3.6	12.5	14	12	M10*1.0	33	12	M5	29g
M10-L55-11	11	55	2.1	6.4	H6	5	13.6	12.5	14	12	M10*1.0	33	12	M5	31g
M10-L65-11	11	65	2.1	6.4	H6	5	23.6	12.5	14	12	M10*1.0	33	12	M5	33g
M10-L75-11	11	75	2.1	6.4	H6	5	35.5	12.5	14	12	M10*1.0	33	12	M5	35g
M10-L100-11	11	100	2.1	6.4	H6	5	57.5	12.5	14	12	M10*1.0	33	12	M5	38g
M12-L45-07	7	45	2.1	3.6	H6	5	6	12.5	17	16	M12*1.0	33	12	3	33g
M12-L55-07	7	55	2.1	3.6	H6	5	16	12.5	17	16	M12*1.0	33	12	3	36g
M12-L65-07	7	65	2.1	3.6	H6	5	26	12.5	17	16	M12*1.0	33	12	3	39g
M12-L75-07	7	75	2.1	3.6	H6	5	35	12.5	17	16	M12*1.0	33	12	3	52g
M12-L45-11	11	45	2.1	6.4	H6	5	3.2	12.5	17	16	M12*1.0	33	12	M5	36g
M12-L55-11	11	55	2.1	6.4	H6	5	11	12.5	17	16	M12*1.0	33	12	M5	38g
M12-L65-11	11	65	2.1	6.4	H6	5	21	12.5	17	16	M12*1.0	33	12	M5	49g
M12-L75-11	11	75	2.1	6.4	H6	5	30	12.5	17	16	M12*1.0	33	12	M5	41g
M12-L100-11	11	100	2.1	6.4	H6	5	55	12.5	17	16	M12*1.0	33	12	M5	44g
