제품 특징
 50.098 |  50.141 | 50.145 |  50.037 |

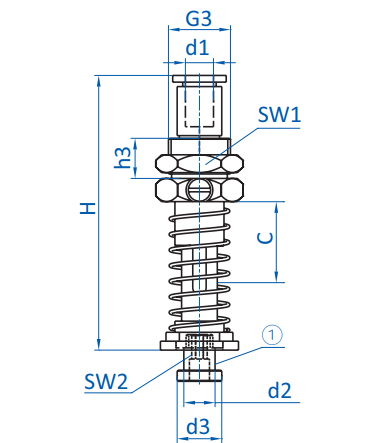

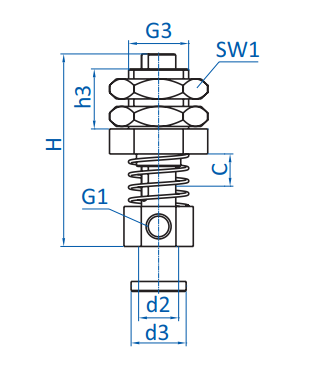

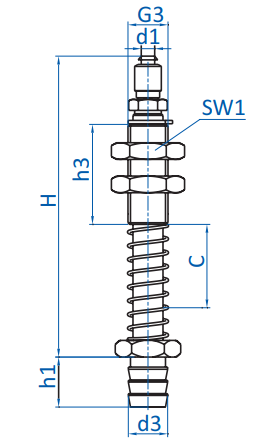

| Item no. | 50.098 | 50.141 | 50.145 | 50.037 |
| Ø d1 [mm] | 6 | -- | -- | 4 |
| Ø d2 [mm] | 7 | 5 | 8 | -- |
| Ø d3 [mm] | 10 | 7 | 11 | 5.5 |
| G1 | -- | M5 | M5 | -- |
| G3 | M14x4 | M10x1 | M12 | M12x1.5 |
| H [mm] | 100 | 40 | 44 | 89 |
| h1 [mm] | -- | -- | -- | 7 |
| h3 [mm] | 9 | 12 | 15 | 30 |
| SW1 | 17 | 14 | 17 | 19 |
| SW2 | 3 | -- | -- | -- |
| C [mm] | 50 | 8 | 10 | 25 |
Series | 1 | 2 | 2 | 2 |
Spring rate | 0.066 N/mm | 0.475 N/mm | 0.365 N/mm | 0.503 N/mm |
Max. spring force | 3.8 N | 4.8 N | 3.8 N | 12.8 N |
Spring pre-load | 0.5 N | 0.5 N | 0.1 N | 0.2 N |
Stroke C | 49.5 mm | 9 mm | 10 mm | 25 mm |
Non-rotating | Yes | No | No | No |
Thread suction side G2 | Without (Snap-in) | Without (Snap-in) | Without (Snap-in) | Without (Snap-in) |
Weight | 67 g | 12 g | 39 g | 69 g |
Thread fixing bushes G3 | M14x1-male | M10x1-male | M12-male | M12x1.5-male |
Hose inner diameter | 4 mm | 4 mm | ||
Hose outside Ø | 6mm | |||
Deflection limiter | Yes | |||
| CAD | 다운 | 다운 | 다운 | 다운 |
